Fig. 7

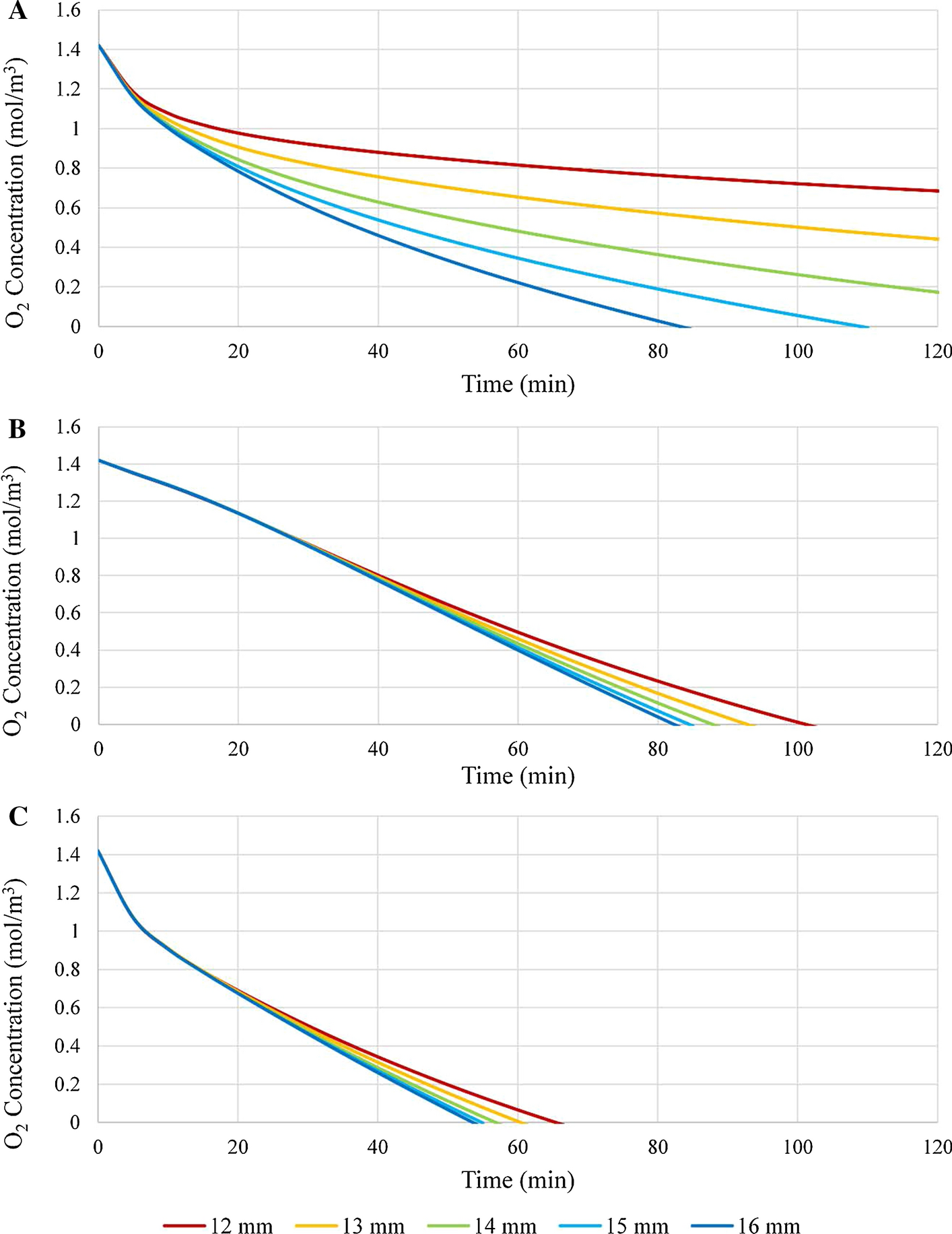

Oxygen concentration vs. time as a function of conduit length (ranging from 12 to 16 mm in 1 mm increments) for a nerve to conduit diameter ratio of 0.7:1 at (A) location 1, (B) location 2, and (C) location 3
