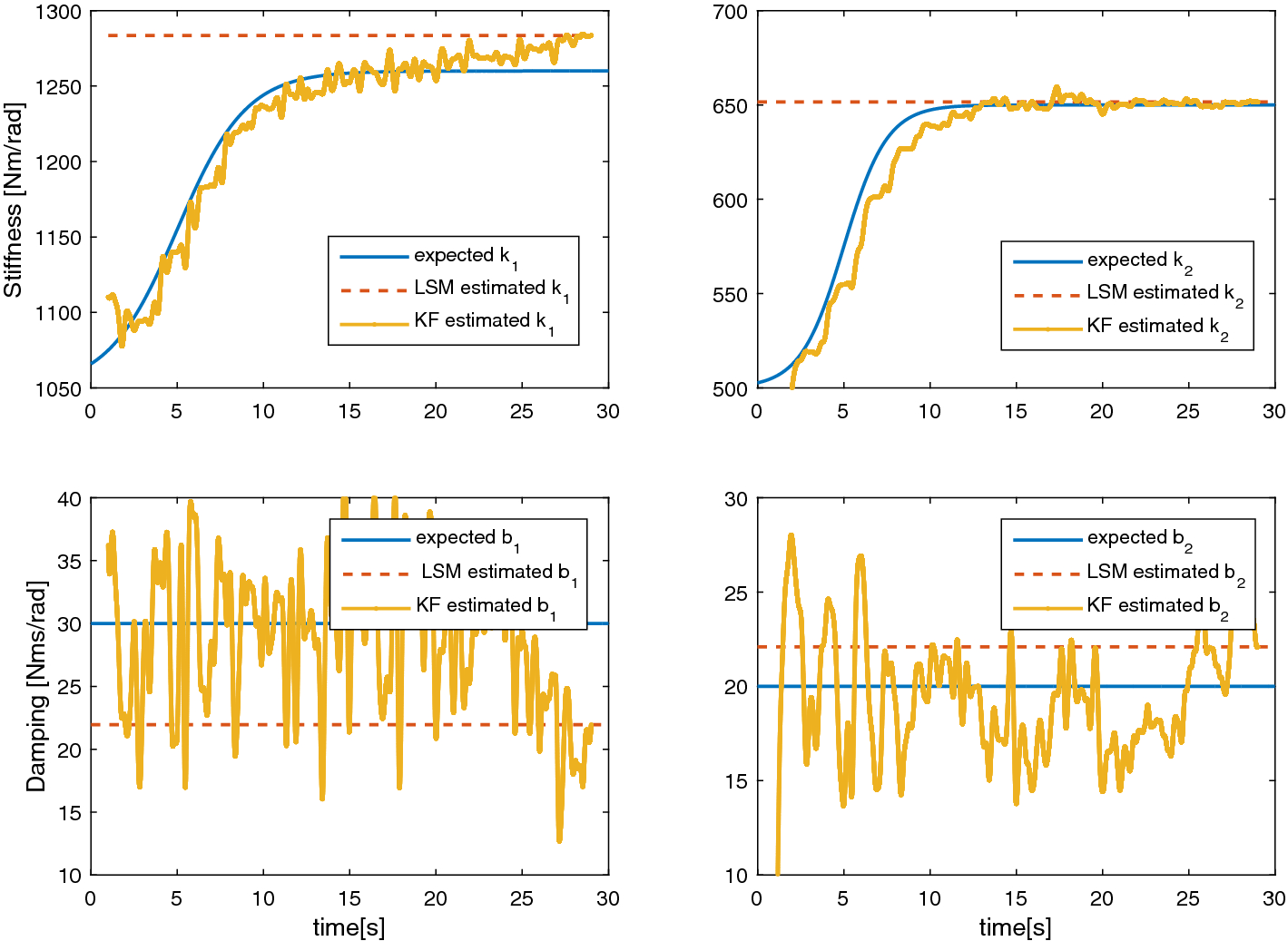

Fig. 4

Estimated values for the visco-elastic parameters obtained using simulated data. The continuous blue line is the parameter value used to generate the data set, the dashed red line is parameter value estimated using a least squares approach, and the yellow line gives the time changing values obtained using a Kalman filter estimation
