Fig. 4
From: Development of temperature controller-integrated portable HIFU driver for thermal coagulation

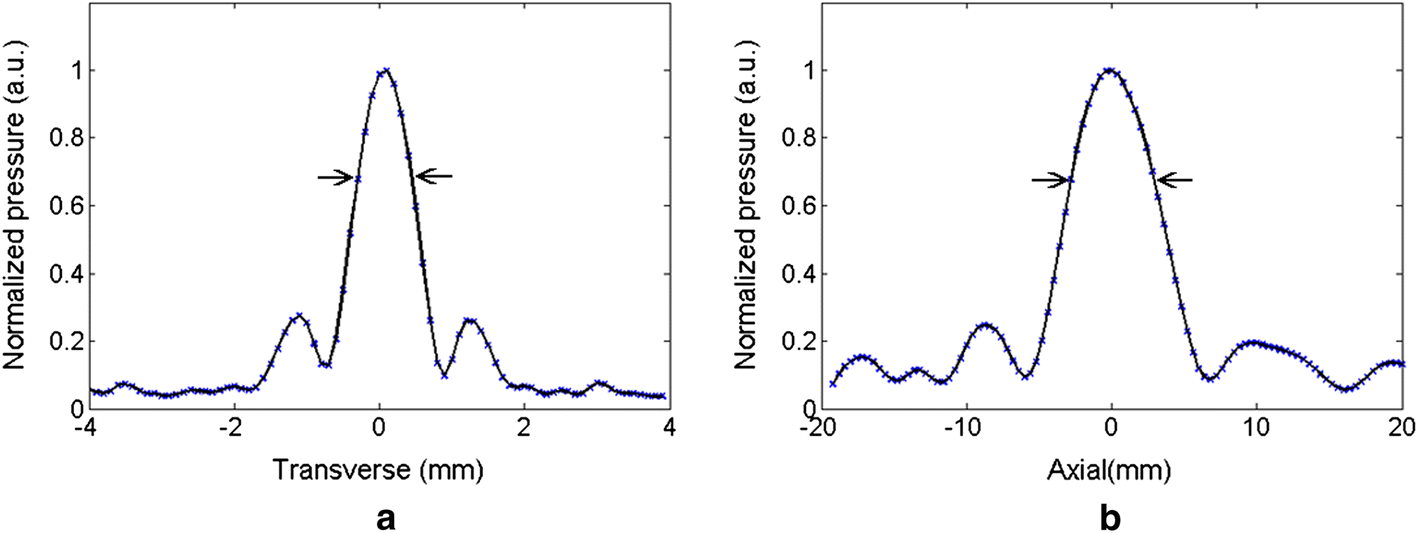

Spatial distribution of normalized acoustic pressure at the focal point of 2 MHz transducer in water: a transverse and b axial directions of beam propagation (arrows represent − 6 dB bandwidth)
