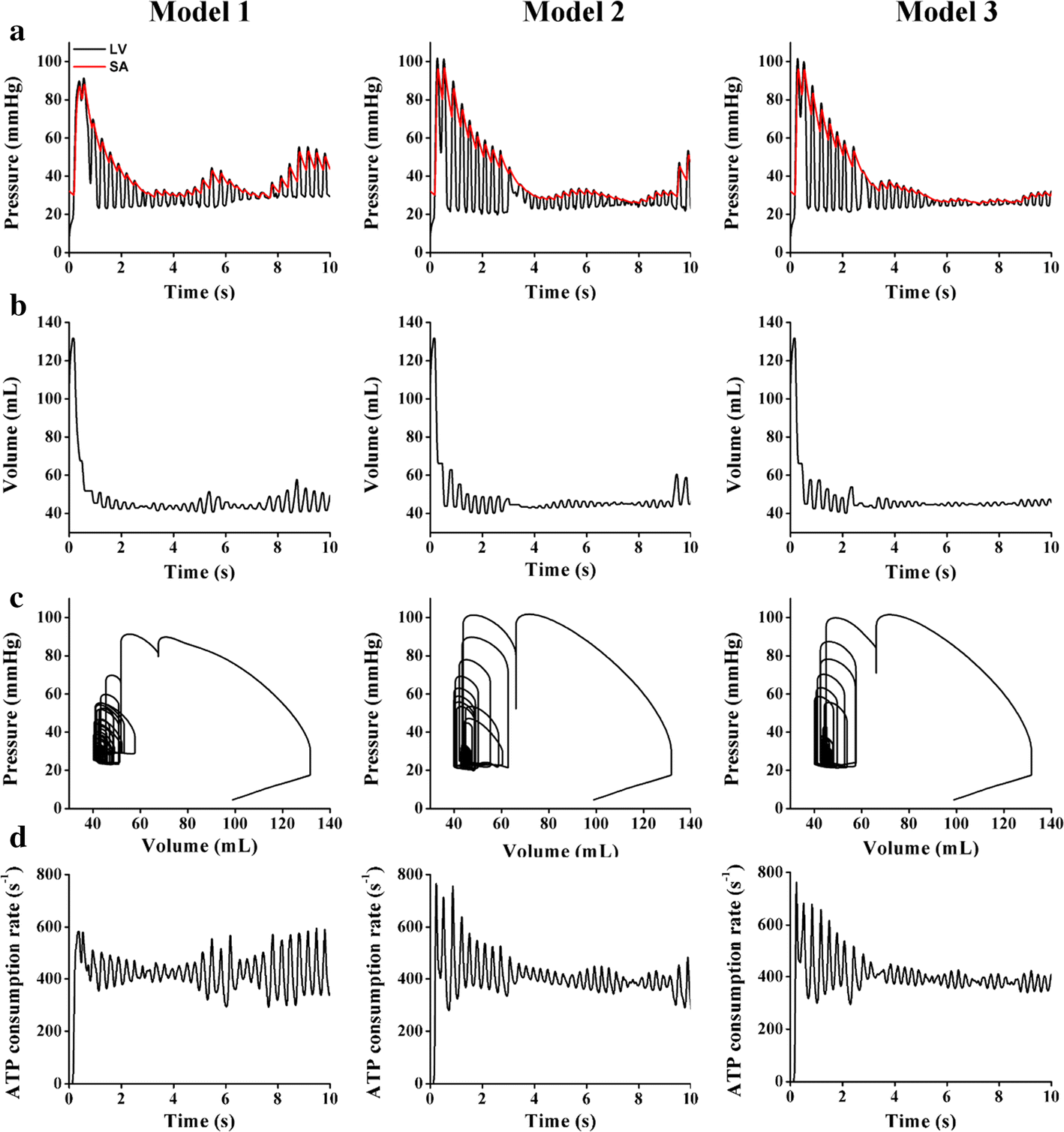

Fig. 7From: Effect of myocardial heterogeneity on ventricular electro-mechanical responses: a computational studyVentricular mechanical responses during reentry, in which the initial condition was based on the outputs derived from the previous electrical simulation using the S1–S2 protocol that already generated reentry (MCV of 70 cm/s). a LV and SA pressure graphs. b Volume charts. c P–V curves. d ATP consumption-rate graphsBack to article page
